ZWHOPES® Torsion-bar Double Servo CNC Press Brake
ZWHOPES® Double Servo Hydraulic CNC Press Brake is designed with the torsion bar, servo diver driving the Y axis and the two cylinders move up and down simultaneously. The X axis (stroke and distance of the back gauge) is driven by servo motor. The machine adopts an integrated hydraulic system, which is more reliable and easy to maintain. The fuselage adopts the simplified design of the European Union, and is integrally welded and integrally formed, and the stress is relieved through repeated treatment. The single mode and reversing and maintenance time of the machine can be controlled by the time relay. and the adjustment amount is displayed by DA41s or TP10s. The machine is equipped with a safety fence and electronic interlocking device to ensure safe operation.
Stable and Durable Performance Of The Machine Body
- The machine frame integrated welding.
- The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.
- Internal stress lamination by tempering Shot blast to remove rust and anti-rust treatment.
- Shot blast to remove rust and anti-rust treatment.
Scientific design
- Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.
- Possibility to add options and upgrades on the configuration, at later stage.
TP10 Control System & Delem DA41s:
- High precision positioning control of backgauge and slider two axes
- Programmable control of bending process
- Programmable valve group output control (PLC function)
- Multiple parts programming and processing can realize multi-step automatic operation
- Support angle programming, input angle automatically calculate depth
- Support 40 programs storage, 25 processes per program
- Automatic retreat function, avoid the interference of the back gauge device and the workpiece, reduce wear
- Manual log teaching
- Metric to English conversion
- Chinese / English multi-language display
- Industrial LCD screen full Chinese display
- With password protection, when users need to modify parameters, they need to enter the correct user password
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals.
If you would like to have a question then get in touch today, we are ready to assist 24/7.
We welcome your cooperation and we will develop with you.
High lights
High Efficient Working Table
You can use the whole bending length as there are no interference contours.

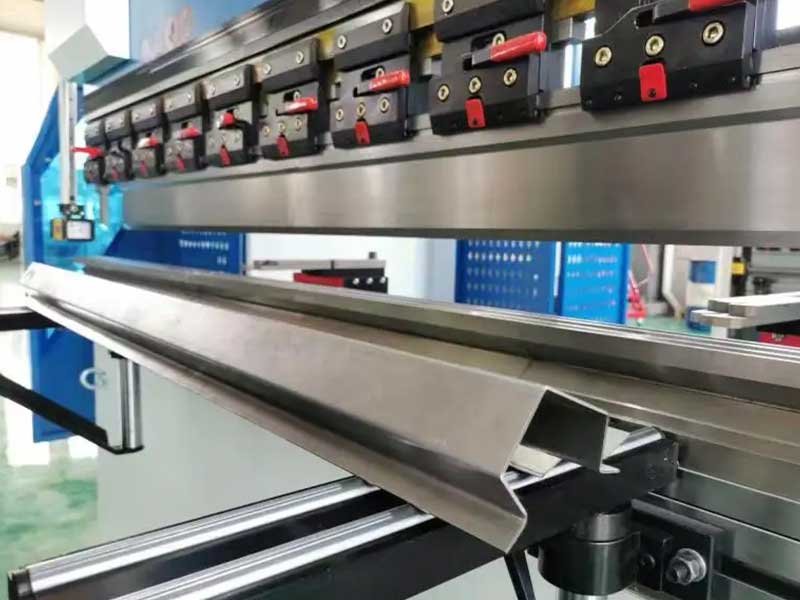

CNC Customized Mold
Quick Clip
Fast tool changes thanks to vertical set up,to reduce your set up times.

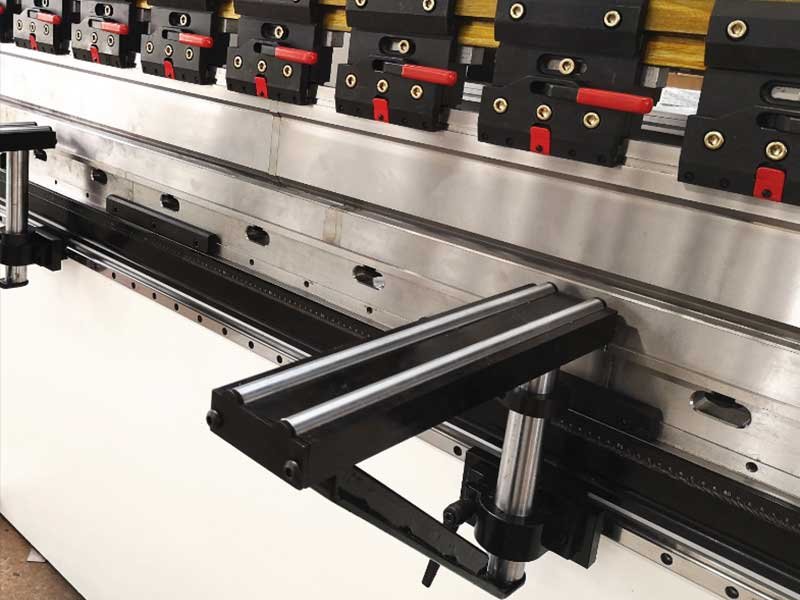

Supporting Arms
The ergonomic support brackets and led work area illumination serve to maximize your operating ease.
Servo Driver Y Axis
To increase speed and energy saving
Synchronous Wheel Timing Belt
To make X axis more efficient and precise
Hydraulic System
(Bosch-Rexroth from Germany)
Precise positioning stroke travel
Automatic Crowning System
To give more accurate bending angle
Laser Safe
High efficient and powerful back gauge
Servo motor drive back gauge
Servo drive back gauge system to increase speed.and energy saving.
The ball screw and linear guide
Dynamic back gauges and the high speed axis thanks to the ball screw and linear guide.
Double linear guides and integrated support beam
To improve finger movement accuracy.
Need help finding a machine?
We will gladly assist you in making the right decision to achieve your business goals.
If you would like to have a question then get in touch today, we are ready to assist 24/7.
We welcome your cooperation and we will develop with you.
Back Gauge System
√ 2 AXIS BACK GAUGE (X,R)
√ 4 AXIS BACK GAUGE (X,R,Z1,Z2)
√ 6 AXIS BACK GAUGE (X1,X2,R1,R2,Z1,Z2)
Technical Specifications
Model | Bending Pressure (kn) | Bending Length (mm) A | Column Distance (mm) B | Throat Depth (mm) D | Slider Stroke (mm) C | Max Opening Height (mm) E | X-axis Max Distance (mm) | Sliding Front Supporting Arms (Pcs) | Back stopper (PCS) | Main Motor (kw) | LengthxWidth x Height (mm) | Weight (T) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
30T/1600 | 300 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1620 | 2000 |
40T/1600 | 400 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1820 | 2500 |
40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2200×1200*1900 | 2750 |
40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1200x1900 | 3000 |
50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500*1200*2000 | 3400 |
63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1300x2210 | 4000 |
63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 500 | 2 | 3 | 5.5 | 3200x1300x2210 | 4800 |
80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 500 | 2 | 2 | 7.5 | 2500x1400x2300 | 5000 |
80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 500 | 2 | 3 | 7.5 | 3200x1500x2300 | 6000 |
80T/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 500 | 2 | 4 | 7.5 | 4000x1500x2400 | 7000 |
100T/2500 | 1000 | 2500 | 1990 | 320 | 120 | 350 | 500 | 2 | 2 | 7.5 | 2500x1600x2400 | 6000 |
100T/3200 | 1000 | 3200 | 2600 | 320 | 150 | 400 | 500 | 2 | 3 | 7.5 | 3200x1600x2600 | 6800 |
100T/4000 | 1000 | 4000 | 3200 | 320 | 150 | 400 | 500 | 2 | 4 | 7.5 | 4000x1600x2600 | 8000 |
125T/3200 | 1250 | 3200 | 2600 | 320 | 150 | 400 | 500 | 2 | 3 | 11 | 3200x1600x2600 | 7000 |
125T/4000 | 1250 | 4000 | 3200 | 320 | 150 | 400 | 500 | 2 | 4 | 11 | 4000x1600x2600 | 8500 |
160T/3200 | 1600 | 3200 | 2580 | 320 | 200 | 460 | 500 | 2 | 3 | 11 | 3200x1700x2700 | 10000 |
160T/4000 | 1600 | 4000 | 2900 | 320 | 200 | 460 | 500 | 2 | 4 | 11 | 4000x1700x2800 | 11000 |
160T/5000 | 1600 | 5000 | 3900 | 320 | 200 | 460 | 500 | 2 | 5 | 11 | 5000x1900x3100 | 13500 |
160T/6000 | 1600 | 6000 | 4900 | 320 | 200 | 460 | 500 | 2 | 6 | 11 | 6300x1900x3200 | 18500 |
200T/3200 | 2000 | 3200 | 2480 | 320 | 200 | 460 | 500 | 2 | 3 | 11 | 3200x1950x2800 | 11000 |
200T/4000 | 2000 | 4000 | 2900 | 320 | 200 | 460 | 500 | 2 | 4 | 11 | 4000x1950x2800 | 12500 |
200T/5000 | 2000 | 5000 | 3900 | 320 | 200 | 460 | 500 | 2 | 5 | 11 | 5000x1950x3000 | 14000 |
200T/6000 | 2000 | 6000 | 4900 | 320 | 200 | 460 | 500 | 2 | 6 | 11 | 6000x1950x3300 | 20000 |
250T/3200 | 2500 | 3200 | 2450 | 400 | 250 | 590 | 500 | 2 | 3 | 18.5 | 3250x2000x3200 | 18500 |
250T/4000 | 2500 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 18.5 | 4000x2000x3400 | 20000 |
250T/5000 | 2500 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 18.5 | 5000x2000x3400 | 23000 |
250T/6000 | 2500 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 18.5 | 6000x2000x3400 | 27000 |
300T/3200 | 3000 | 3200 | 2450 | 400 | 250 | 590 | 500 | 2 | 3 | 22 | 3200x2000x3450 | 20500 |
300T/4000 | 3000 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 22 | 4000x2000x3450 | 22000 |
300T/5000 | 3000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 22 | 5000x2000x3450 | 25000 |
300T/6000 | 3000 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 22 | 6000x2000x3450 | 28500 |
400T/3200 | 4000 | 3200 | 2400 | 400 | 250 | 590 | 500 | 2 | 3 | 30 | 3200x2180x3400 | 22500 |
400T/4000 | 4000 | 4000 | 2900 | 400 | 250 | 590 | 500 | 2 | 4 | 30 | 4000x2180x3400 | 25000 |
400T/5000 | 4000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 30 | 5000x2180x3500 | 29000 |
400T/6000 | 4000 | 6000 | 4900 | 400 | 250 | 590 | 500 | 2 | 6 | 30 | 6000x2180x3800 | 34000 |
500T/5000 | 5000 | 5000 | 3900 | 400 | 250 | 590 | 500 | 2 | 5 | 45 | 5050x3500x3700 | 42000 |
500T/6000 | 5000 | 6000 | 4900 | 400 | 320 | 590 | 500 | 2 | 6 | 45 | 6050x3500x3700 | 54000 |
600T/4000 | 6000 | 4000 | 2900 | 400 | 320 | 590 | 500 | 2 | 4 | 55 | 4050x4500x3700 | 44000 |
600T/6000 | 6000 | 6000 | 4900 | 400 | 320 | 590 | 500 | 2 | 6 | 55 | 6050x4500x3700 | 60000 |
